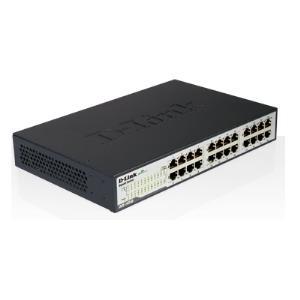

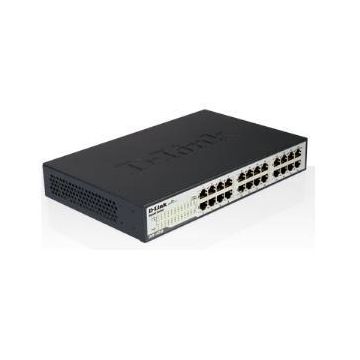

Utilizing both Gigabit technology and D-Link Green technology, the D-Link DGS-1024D is an ideal switch for the eco-minded and competitive small business.
| asic |
|---|
| Brand Name: |
D-Link |
| Ethernet Technology: |
Gigabit Ethernet |
| Layer Supported: |
2 |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
| Port/Expansion Slot Details: |
Gigabit Ethernet |
| Power Source: |
Power Supply |
| Product Type: |
Ethernet Switch |
| Total Number of Network Ports: |
24 |
| Battery Information |
|---|
| Power Source: |
Power Supply |
| General Information |
|---|
| Brand Name: |
D-Link |
| Manufacturer Part Number: |
DGS-1024D |
| Manufacturer Website Address: |
http://www.dlink.com |
| Manufacturer: |
D-Link Systems, Inc |
| Product Model: |
DGS-1024D |
| Product Name: |
DGS-1024D Ethernet Switch |
| Product Type: |
Ethernet Switch |
| Interfaces/Ports |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Number of Network (RJ-45) Ports: |
24 |
| Port/Expansion Slot Details: |
24 x Gigabit Ethernet Network |
| Total Number of Network Ports: |
24 |
| Media & Performance |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
| Miscellaneous |
|---|
| Certifications & Standards: |
- IEEE 802.3: 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u: 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab: 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3: NWay auto-negotiation
- IEEE 802.3x: Flow Control
- EIA/TIA-568
Emission (EMI):
- FCC Class A
- CE Class A
- VCCI Class A
Safety:
|
| System Requirements: |
Windows |
| Network & Communication |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Layer Supported: |
2 |
| Network Technology: |
10/100/1000Base-T |
| Network |
|---|
| Network Technology: |
10/100/1000Base-T |
| Physical Characteristics |
|---|
| Depth: |
179.8 mm |
| Height: |
43.9 mm |
| Weight (Approximate): |
1.81 kg |
| Width: |
279.9 mm |
| Power Description |
|---|
| Input Voltage: |
110 V AC |
| |
220 V AC |
| Power Source: |
Power Supply |
| Product Information |
|---|
| Power Source: |
Power Supply |
| Width: |
279.9 mm |
| Technical Information |
|---|
| Ethernet Technology: |
Gigabit Ethernet |
| Media Type Supported: |
Twisted Pair |
| Number of Network (RJ-45) Ports: |
24 |
| Power Source: |
Power Supply |
| Warranty |
|---|
| Additional Warranty Information: |
- Any replacement product will have the remainder of the initial warranty period
|
| Limited Warranty: |
2 Year |
>
