Description

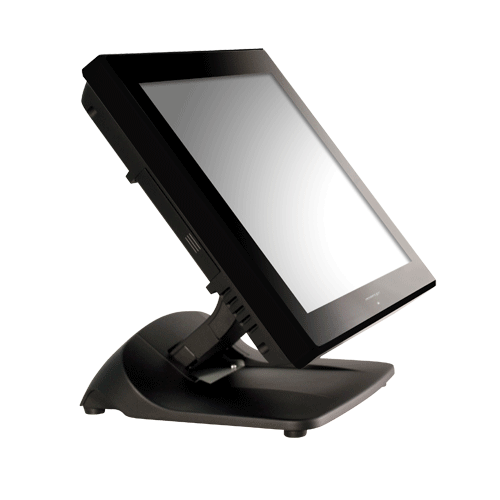

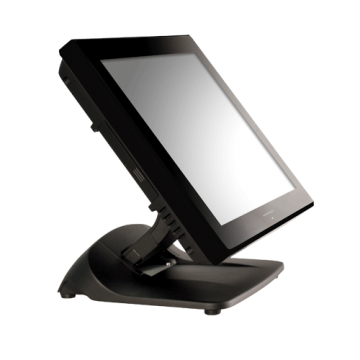

XT-5315 15" Bezelfree LCD touch (PCAP) terminal(1024*768) with Intel Haswell i3-2.4GHz(3M Cache), 8GB DDR3, 128GB SSD, with 7th GEN Base, WIN 10IoT Preloaded
- Fan-free Design
- Projective Capacity Touch
- Intel 4th generation Haswell CPU
- New GEN7E foldable base that allows JIVA XT Series to be configured into different configurations
- New GEN8E foldable base that integrates internal power adaptor and Powered USB port into the base stand
- Mini-PCIe expansion slot
- Dual LAN ports
Specifications
CPU
Intel G1820 - 2.7GHz. 2M Cache
Can also be purchased with i3
Can also be purchased with i3
Memory
DDR3 1333 MHz, SO-DIMM socket x 2, max 16 GB, default 4 GB
Storage device(s)
In Australia Standard with 64 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
Display
15" TFT LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
6 x RS-232 Ports (2 x DB9, 2 x RJ50 on I.O plate)pin header x 2 from service window, with 5V/12V Support
6 x Standard USB Ports
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x mini-PCIe slot internal expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional 1 x Parallel port with Proprietory cable
Optional powered USB Ports 1 x 24V and 3 x 12V via GEN8e Base
6 x Standard USB Ports
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x mini-PCIe slot internal expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional 1 x Parallel port with Proprietory cable
Optional powered USB Ports 1 x 24V and 3 x 12V via GEN8e Base
Audio
2W Speaker internal x 1 + Line Out
OS Support
Windows 7 / POSReady 7 / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)
372mm x 320mm x 252.7mm
Weight
5.86 Kg
